Dental Intraoral X-Ray Digital Sensors I-View Gold Radiography Imaging Oral Teeth Examination
Buyamag INC

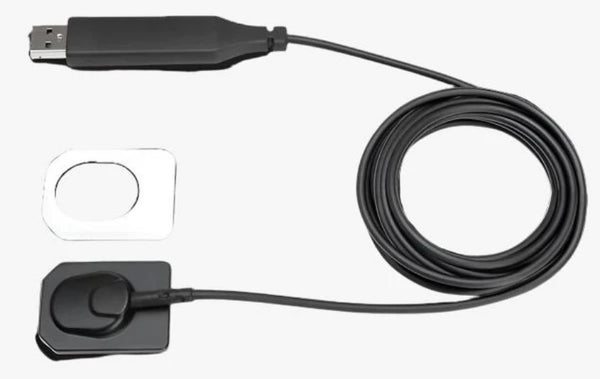

Intraoral digital radiography sensors Trident S.r.l. I-View Gold. Used for dental teeth X-Ray radiology examination & USB direct connector plug.
"DeepView" Software Driver-Included. Permit 10 Users
INTENDED TO USE:
Trident S.R.I. I-ViewGold is a digital imaging solution for intraoral dental radiography based on CMOS (Complementary Metal-oxide Semiconductor) technology. The sensor is a receptor which captures the images obtained when using an X-Ray generator for diagnostic purposes.
Intraoral Digital Sensors I-ViewGold available in two sizes:
Small I-ViewGold intraoral 20.00 x 30.01 mm active area
Large I-ViewGold intraoral 25.95 x 37.96 mm active area
State-of-the-art technology reduces the patients' exposure and provides excellent image quality with no missing data due to the single-chip CMOS.
The head has an ergonomic design based on human oral anatomy, for patient convenience and comfort, USB direct connector plug.
I-ViewGold sensor employs a fiber optic plate with CSI scintillator for X-Ray-to-light converter. The FOP(Fiber Optic Plate) is a highly X-Ray attenuating material that minimizes X-Ray absorption on the end CMOS photosensor array, thus, minimizing X-Ray induced noise at the
photosensor array. In addition, the scintillators offer high-resolution performance compared to conventional phosphors.
I-ViewGold outputs X-Ray imaging data output of CMOS to 12-bit Digital Data through ADC. In addition, it can detect the external X-Ray source and send a trigger signal to acquire the synchronized X-Ray Imaging Data.
Key Features:
Rounded off edges
Smooth casing
Outstanding cable flexibility,
Direct connection to personal computer for image acquisition via USB direct connector.
Cesium Iodide (CsI) scintillator layer Available in two formats: size Large and Small
Dental Intraoral Digital Sensor Include Software. Permit 10 Users
"DeepView" Software Driver - Included, Permit 10 Users
Sensor Integrate with most sensors software available SOFTWARE INTEGRATION WIT OTHER BRANDS
WARNING: THIS PROCEDURE MUST BE DONE FOR A SPECIALIZED TECHNICIAN. BUYAMAG INC ARE NOT RESPONSIBLE FOR ANY ACIDENT OR DAMAGE DURING PROCEDURE
|
