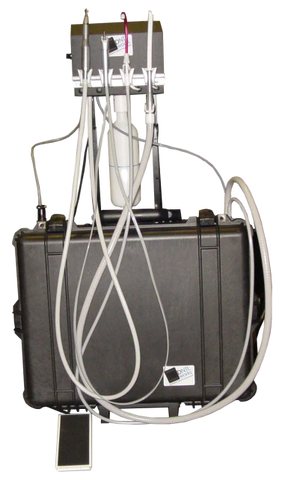

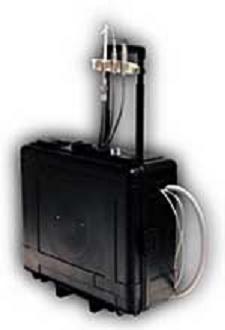

Dental Portable Hygiene Unit Mobile System Self-Contained, In Field Or Office Operatory
Dental Portable Hygiene Unit Mobile System Self-Contained and can be used In the field or in office treatments.
The exceptionally powerful and quiet system self-contained hygiene units, exceeds the standard for quality in portable sealant programs.
This mobile system features the suction power of our PortaVac portable vacuum unit, plus an air-water syringe for irrigation and drying.
In cases where a prophylaxis handpiece is indicated, the offers the versatility of a multi-function handpiece (without water). System have a one-piece design and include built-in wheels with retractable handles for easier transportation.
- The impact-resistant case incorporates built-in wheels and a retractable handle
- Powerful, quiet vacuum pump with dual hoses for HVE and saliva ejector use
- Integrated, non-retracting water source with air/water syringe for irrigating and drying
- Large waste container with automatic overflow shutoff
- Mini-compressor for air/water syringe use
- Hospital-grade power cord with 15 amp circuit breaker
- Made with pride in the USA additional Features
- One-piece design is both durable and rugged
- Powerful vacuum pump with dual-hose design accommodates many brands of HVE and saliva ejector tips
- Impact-resistant case with built-in wheels and retractable handle
- Efficient mini-compressor for air/water syringe use
- The optional piezo-electric scaler for the ProSeal II
- Built-in carrying handle
Length: 24.5” (62.2 cm)
Width: 10.0” (25.4 cm)
Height: 20.0” (50.8 cm)
Weight: ProSeal I - 48 lbs. (22.7 kg)
ProSeal II - 60 lbs. (27.0 kg
Power: 1/3 hp
Vacuum Strength: 10” InHg
Vacuum Flow: 4.8 cfm
Waste Receptacle: 2qt. (1.9 Liters)
Sound Level: 46 dB
Automatic Overflow Shutoff Valve
110 V Part # 1300 220 V Part # 1305
PROSEAL II ONLY
Motor: 0 - 40,000 rpm
10:1 reduction, straight nose cone attachment included
Other slow speeds and prophy attachments are available.
Compressor Type Oil-Free Compressor/Vacuum Pump
Dimensions 24.5"x10"x20" to ??"
Element Filtration 50 micron Vacuum System
Flow Rate 1 scfm @ 27psi Compressor
Flow Rate 4.8 scfm @ 10 inhg Vacuum System
Horse Power 1/16hp Compressor, 1/3hp Vacuum Pump
Operating Pressure 65psi Air System
Shipping Size 24"x24"x19"
Shipping Weight 65 lbs
Sound Level 46db @ 3'
Volume Air Tank 500ml
Volume Vacuum Container 2qt, 1.9 Liter
Volume Water Container 500ml
Wattage 690W to 1440W with Accessories
Voltage Available: 110 or 220v.
Replacement parts available, call us 760-419-3232
