Odor Control Fogging Chemical Spray Disinfecting Fumigate Machine Portable/Mobile
Temperature Humidity Meter Hydrometer
Humidity Meter & Dew Point

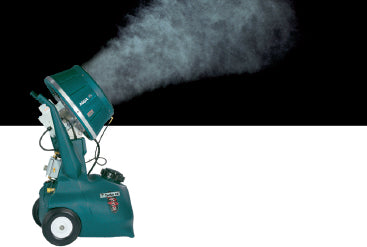

Versatile for odor control disinfecting chemicals sprayer and, propagation fogging Chemicals sprayer in common industrial indoor & outdoor space. Mobile system design for Chemical fogging, spray. The system is specially designed for atomizing and dispersing odor control product in industrial settings. Units are sturdy, compact and powerful. Can be connected to a metering pump for long-term use. This system used in out-door or in-door factories, agriculture industry, greenhouse or anywhere odor control needed. System is a sturdy, compact, and enormously powerful unit designed for unmanned application of, or sterilization chemical solutions. It is corrosion resistant and suitable for use in ultra low volume (ULV) chemical application. The simple design provides mobility and ease of use. Humidifier Fogging units are sturdy, compact, enormously powerful, made of heavy-duty selected - to last materials, 300 series stainless steel, and user-friendly. Applications include: interior - large, medium, small scale humidification, evaporative cooling, outdoor - humidification evaporative cooling, and fumigation.
Centrifugal atomization produces billions of tiny, fog-like particles of chemical solution. After the water evaporates, the particles chemical residue travels through the air and neutralizes odor. Baldor (r) Wash-Down-Duty(tm) Motor Industrial Grade motor for pressurized water use, power-coat Epoxy finish, stainless steel shaft. Designed with castor wheels for easy mobility, portable ease of move and use.

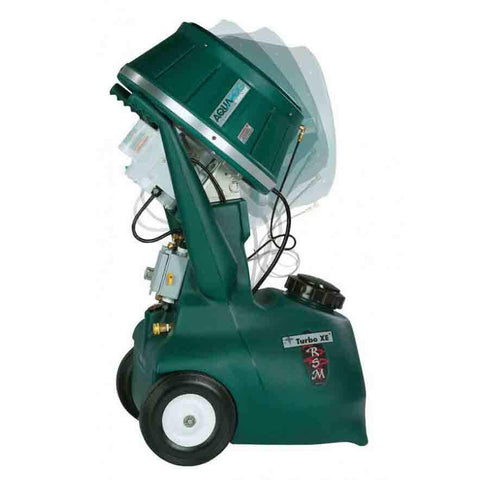

This mobile fogger features a four position pivoting fogging head and powerful airflow propulsion. The fogging output is factory calibrated at a maximum flow rate of 5 GPH, but it can be recalibrated by the operator for a variety of applications, such as humidification. Units have an internal agitation pump to maintain chemical mixtures. The fogging output is factory calibrated at a maximum flow rate of 5 GPH, but it can be recalibrated by the operator for a variety of applications, such as humidification. Arrives Fully Assembled
Include: Float Valve in the water tank for automatic water refill and maintain the water level in the water tank. Four Position Pivoting Fogging Head. Fluid level gauge, On/Off Power Switch. 20 feet long Power Cord with plug. Garden Hose Connection. 1/4 Turn Ball water valve to control GPH ( water gallons per hour ). Capacity up to 32 GPH. Nozzle-Free Atomization. Pivoting Fogging Head. Metering pump, Chemical agitation pump, Intermatic (R) timer control, Garden hose connection, Recycles waste water. Baldor (r) Wash-Down-Duty (tm) Motor Industrial Grade with stainless steel shaft. Rolling castor wheels. Arrives safely packaged, impact protected and fully assembled. Ready for use.
Standard Controls and Features:
The ORSM has water-tight connections and a double-throw NEMA 4X switch box. The machine maximum flow rate (ball valve fully open) can be recalibrated to any rate between 1 and 11 GPH. Large tank lid access, Pivoting Fogging Head, Garden hose connect. Rolling castor wheels. Fluid level gauge, A 1/4 turn Ball Valve Control flow rates and fogging density output. Internal Calibration Valve, In-line Strainer with Clear Cap,
Length 25.5 in / 65 cm
Width 21 in / 53 cm
Height 44 in / 112 cm
Weight: 130 lb.
Approximate Weight: 80 lbs / 36.3 kg
Approximate Shipping Weight: 130 lbs / 60.6 kg
Fogging Head Pivot Angle: 0, 15, 30, 45 degrees
Noise @ 10 ft distance:
1/2 hp units, 74 dB(A)
Average Particle Size:
5-10 microns @ low volume
5 ~10 microns @ mid volume
35 microns @ high volume
Tank Capacity: 18 US gal / 68 L
Hardware: 300 Series stainless steel
Endures temperatures from
33F to 160 F
Indoors / outdoors
Humidity to 100% RH
UV stabilized & impact resistant
Temperature Humidity Meter
This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in degr/F or degr/C, Temperature range/accuracy: 32 to 122 dgr/F (0 to 50 degr/C)/1.8degr/F (1 dgr/C) ,Humidity range/accuracy: 20 to 95%RH /3%, Response time: 60 seconds, Power source: CR2032 Lithium-ion battery (included)
Humidity Meter & Dew Point
Ideal for applications up to 100% Relative Humidity. This precision hand-held thermo/hygrometer is ideal for measuring and monitoring ambient and dew point temperatures and relative humidity in a wide range of professional and industrial applications. Dual readout LCD displays in F or C. Temperature range/accuracy: -4 to 122F (-20 to 50C)/1.8F (1C), Humidity range/accuracy: 0 to 100%RH /3% , Response time: 60 seconds, Power source: Two "AAA" batteries (included).
